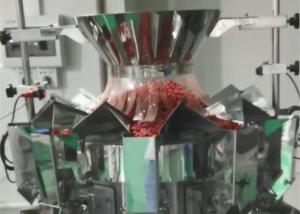

Multihead Weighing Machine Multihead Weigher for Low Target Weight Wolfberry Filling Machine

Brand Name : ConFil

Model Number : FCPC-214V-1D micro / micro plus

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD25,000 ~ 29,000 per set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 sets per month

Delivery Time : 15 ~ 20 working days

Packaging Details : wooden case

Weighing Head : 14 Head, 0.2 Liter

Food Contacting Surface : Sanitary Stainless Steel, Polished Surface

Typical Applications : Seeds, Marijuana Buds, Canabis Flower

Weighing Range : 1 to 50 Gram, Recommended

Weighing Speed : Max. 30 Cycles Per Minute

Accuracy : +0.1 Gram Depends On Application

Minimum Graduation : 0.01 Gram

Ingress Protection : IP 51

Power supply : 100~120Vac, 200~240Vac, 50/60Hz, Single Phase, 1.2kW

Machine Weight : Approx. 350 KG

Contact Now

Multihead Weighing Machine Multihead Weigher for Low Target Weight Wolfberry Filling Machine

Introduction:

The Micro weigher is designed for Ultra-low target weight. In most of applications it can reach +0.1gram average accuracy, with minimum graduation 0.01gram, such as Marijuana Buds and Seeds.

Pre-Checking Unit, it double check the filling weight (net weight) before filling them into pouches or containers

Standard Features:

1- HBM double-beam strain gauge load cell, C3.

2- Products feeding level is controlled by load cell.

3- Hoppers are driven by stepper motor.

4- Stepper motors are casing in aluminum casting with Teflon coating.

5- CAN bus electronic structure.

6- Compact design, smaller footprinter.

7- 10.1inch color touch screen.

Multihead Weighing Machine Multihead Weigher for Low Target Weight Wolfberry Filling Machine

Model

Numbers

of

weighing

head

Weighing

Hopper

volume

(Liter)

Recommend

weighing

Range

(gram)

Max.

Weighing

Speed

(cycles

per minute)

Esteemed accuracy

(gram)

Numbers

of

discharging

point

Ingress

protection

Machine

weight

(approx. Kg)
FCPC-214V-1D micro 14 0.2 1 ~ 50 40 + 0.1 1 IP50 350
FCPC-214V-1D micro plus 14 0.3 1 ~ 50 40 + 0.1 1 IP50 450

FCPC-214V-1D Micro Plus

1- The inclined cabinet provides easy access during installation and maintenance, also 5mm stainless steel is applied.
2- The volume of WH increased from 200ml to 300ml, better performance when the target is over 4gram marijuana buds.
3- Enhanced software for Pre-Checking Unit.
4- Available with Cross-Head Feeder in belt conveying execution.
5- HMI is upgraded to 12.1 inch.

Multihead Weighing Machine Multihead Weigher for Low Target Weight Wolfberry Filling Machine
